無錫市興百利機械設備有限公司

WUXI XINGBAILI MACHINERY AND EQUIPMENT CO.,LTD.
咨詢電話:18168863192
menu

產品目錄

11-5XF-A型復式精選機 5XF-A multiple cleaning machine

11-5XF-A型復式精選機 5XF-A multiple cleaning machine

關鍵詞:

咨詢電話:

熊經理 18168863192

周經理 13665101927

產品介紹

5XF-A型復式清選機 5XF-A multiple cleaning machine


產品介紹

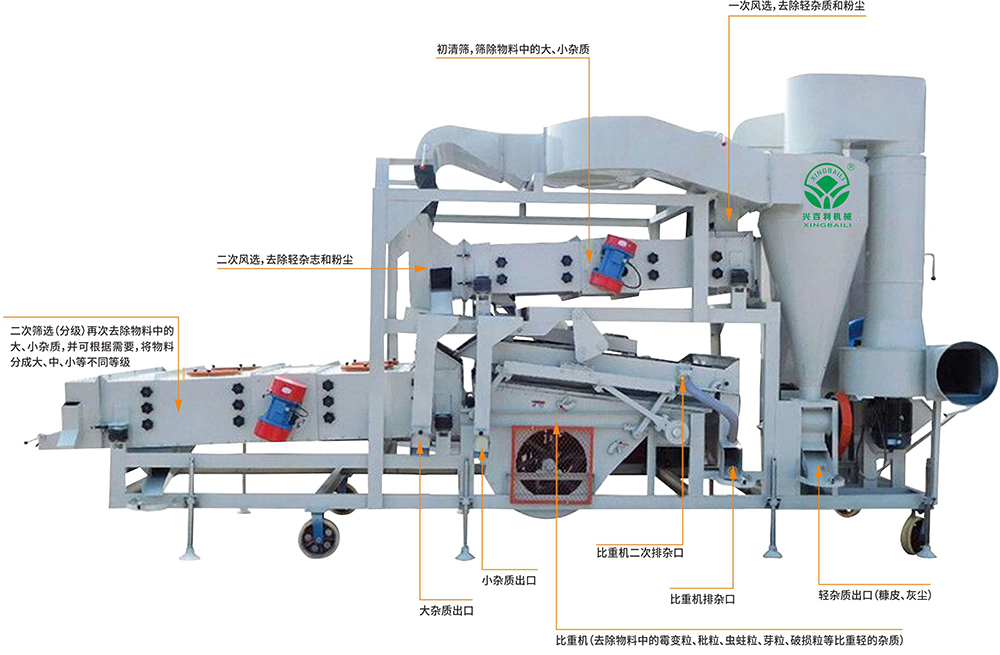

5XFZ-15型復式清選機是目前較為先進的機型,其主要配置有:低轉速提升機、二次風選除塵、上方振動篩、下方重力清選、最后振動分級篩,集多功能為一體的可移動式清選設備。單次加工即可去除作物中的穎殼、糠殼、粉塵、輕雜、秕籽、芽籽、蟲蛀粒、霉變粒、赤霉病粒、大雜質及小雜質等,并同時將該物料分為大粒和小粒,并從不同的出口排出。

Model:

型號

Sieve layer number

篩層數量

Screen surface size(mm)

   篩面尺寸

Screen   box vibration frequency

(Times /   minute)

篩箱振動頻率

Gravity   vibration frequency

(Times/ minute)

重力振動頻率

Gravity vibration amplitude(mm)

重力振幅

Capacity(t/h)

產量

Power

(kW)

功率

Cleanliness

凈度(%)

Weight(kg)

自重量

Overall   Size

外形尺寸

L×W×H(mm)

5XFZ-15A

Three

1250x2400

930

375

20

10-15

15.5

≥98

≈2500

4160×2540≈3980

5XFZ-15B

Three

1250x2400

930

375

20

10-15

20.0

≥98

≈3000

6800×2540×3980

5XFZ-15C

Three

1250x2400

930

375

20

10-15

24.0

≥99

≈3500

9105×2540×3980

5XFZ-25D

Five

1250x2400

930

375

20

20-25

25.5

≥99

≈3850

9105×2540×3980


Product introduction

The 5xfz-15 multiple cleaning machine is a relatively advanced model at present. Its main configuration includes: low-speed elevator, secondary air separation and dust removal, upper vibrating screen, lower gravity cleaning, and final vibrating classification screen. It is a movable cleaning equipment with multiple functions. Single processing can remove the chaff, chaff, dust, light impurity, chaff seed, bud seed, moth eaten grain, moldy grain, scab disease grain, big impurity and small impurity in the crop, and at the same time, the material is divided into big and small particles, and discharged from different outlets.
