無錫市興百利機械設備有限公司

WUXI XINGBAILI MACHINERY AND EQUIPMENT CO.,LTD.
咨詢電話:18168863192
menu

產品目錄

雙風選+振動篩清選機 Double Air Screen Cleaner

雙風選+振動篩清選機 Double Air Screen Cleaner

關鍵詞:

咨詢電話:

熊經理 18168863192

周經理 13665101927

產品介紹

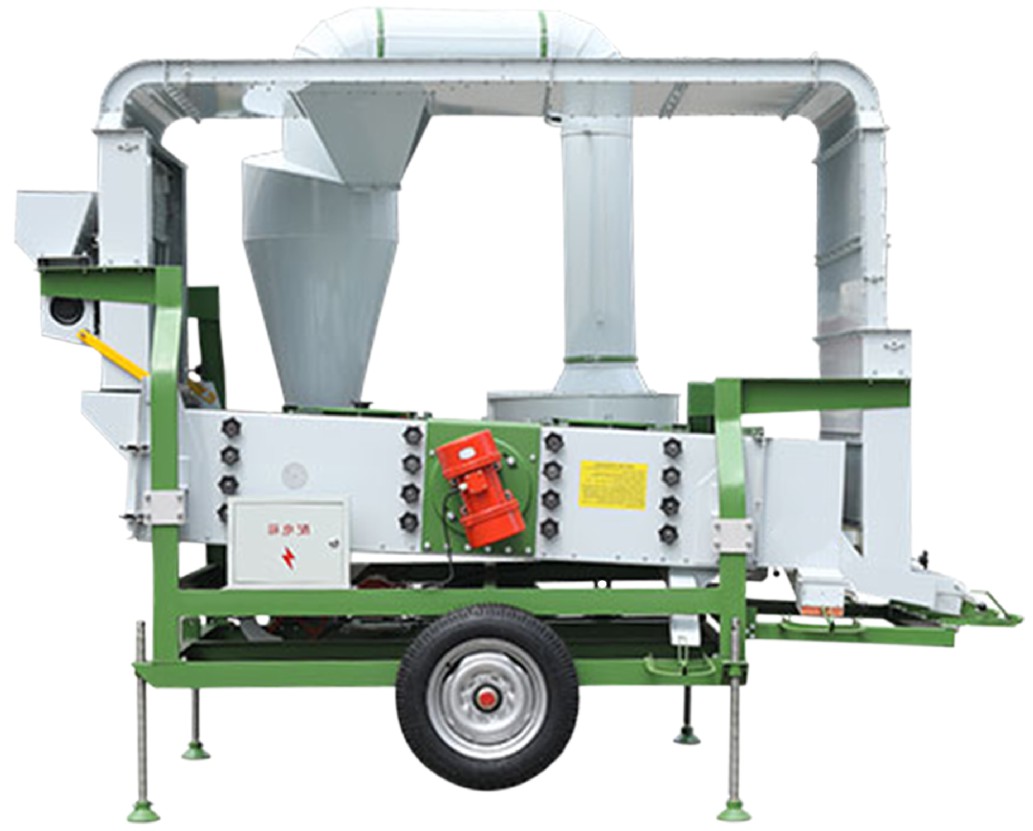

雙風選+振動篩清選機 Double Air Screen Cleaner

物料通過提升機或螺旋輸送機進入前端垂直風篩,此風選可根據雜質與物料的不同比例去除輕雜質。然后進入振動篩,根據不同粒徑的顆粒,采用不同類型的高精度沖孔篩進行大小雜質的清洗。最后物料進入后端空氣篩,二次風選擇可進一步去除殘留的輕雜質。


特點:

1.除輕雜效果好:前后雙吸風道,輕雜、粉塵等雜質經過二次空氣清潔器,去除更徹底。

2.兩個空氣濾網對稱布置,單獨控制。

3.后端風篩在二次風選擇時,會去除一些土塊產生的灰塵,從而提高成品的亮度。

4.大篩面設計1.25m×2.4m,多功能,易換篩。

5.斗式提升機、螺旋輸送機可根據不同物料選用。

6.本清選機適用于葵花籽、瓜子、蕎麥、亞麻籽、芝麻籽等高雜質物料。

Model

型號

Sieve layer number

篩層數量

Sieve   Surface Area (mm)

篩面面積

Vibration frequency(Times / minute)

振動頻率

Power   (kw)

功率

Capacity   (t/h)

產量

Weight (kg)

自重量

Overall   Size

L×W×H (mm)

Remark

備注

5XFS-7.5FC

Four

2400x1250

930

9.5

≥7.5

≥1800

3920×2430×3430

Sunflower seeds:   ≥60bags/h

葵花籽:≥60袋/小時

Beans: ≥ 7.5t/h

豆  子:≥7.5t/h

5XFS-7.5FB

Three

2400x1250

930

9.5

≥7.0

≥1700

3920×2430×3430


Materials enter the front-end vertical air screen through elevator or screw conveyor, this wind selection can remove light impurities according to the different proportion of impurities and materials. Then the materials enter vibration sieve, which can clean big and small impurities by different types of highly precise punching sieve in accordance with different sizes of grains. Finally materials enter the back-end air screen; the secondary wind selection can remove the remnant light impurities further.


Feature:

1.Good effect of removing light impurities: front and rear double suction ducts, light impurities, dust and other impurities are removed more thoroughly through secondary air cleaner.

2.The two air screens arrange symmetrically and control individually.

3.The back-end air screen will remove some dust produced by some clods in the secondary wind selection, thus enhancing the brightness of finished product.

4.Large sieve surface design of 1.25m×2.4m, multi-function and easy to change sieves.

5.Bucket elevator and screw conveyor can be chosen in accordance with different materials.

6.This cleaner is suitable for materials with high impurities, such as sunflower seed, melon seed, buckwheat, flax seed, sesame seed, etc.
