無錫市興百利機械設備有限公司

WUXI XINGBAILI MACHINERY AND EQUIPMENT CO.,LTD.
咨詢電話:18168863192
menu

產品目錄

磁性清選機 Magnetic separator

磁性清選機 Magnetic separator

關鍵詞:

咨詢電話:

熊經理 18168863192

周經理 13665101927

產品介紹

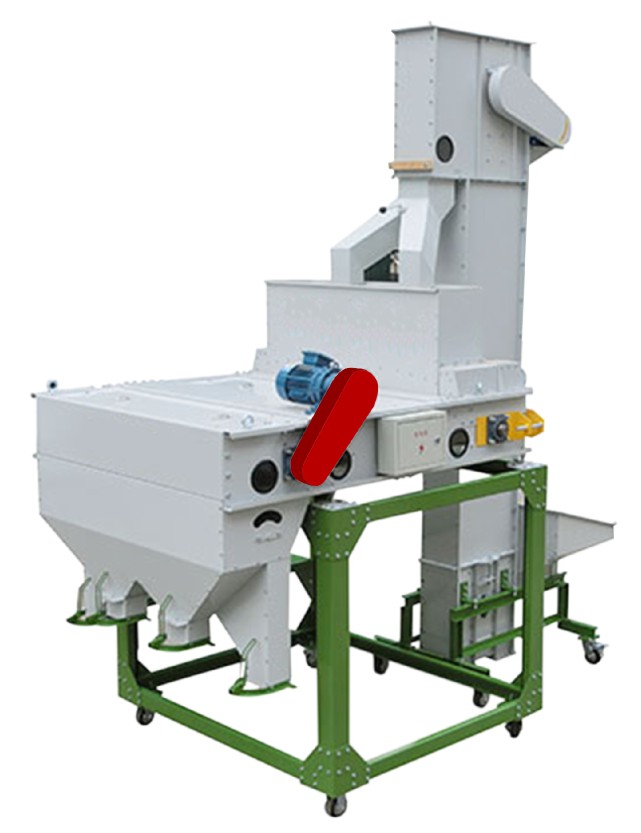

磁性清選機 Magnetic separator

磁性清選機是將土塊與磁性金屬?gòu)募Z食中分離出來。當豆類、谷物置于封閉的強磁場中時,它們?cè)谄л斔蜋C(jī)上運行會形成一個穩定的拋物線運動,由于磁場的吸引力不同,谷物、豆類和土塊會分離。


優勢:

1.sus304不銹鋼板材料,磁封嚴,漏磁少。

2.磁輥磁場強度大于17000高斯,磁吸效果好。

3.寬磁面1300mm,保證加工能力,提高磁吸效果。

4.本機采用自動散糧機構設計,物料均勻鋪滿皮帶。

5.它配備傳感器。根據不同的物料類型,調整到理想的操作速度是非常方便的。


產品型號

Model

磁輥寬度

Width of magnetic roller

磁感應強度(Gs)

Magnetic induction intensity

線速度(m/min)

Linear velocity

去土或金屬率(%)

Rate of soil and metal removal

功率

Power

自重量

Weight

外形尺寸

Overall Size

產量(t/h)

Capacity

備注

Voltage

5XCX-5

13001700030-10099.9
0.75
7001600x1600x20705

380V,50 Hz,三相(必須為三相,電壓可設計為其他)

380V, 50HZ, three phases (must be three phases, voltage can be design to others)

Magnetic cleaning machine is to separate the soil and magnetic metal from the grain. When beans and grains are placed in a closed strong magnetic field, they will form a stable parabola movement when they run on the belt conveyor. Due to the different attraction of the magnetic field, grains, beans and soil blocks will be separated.


Feature:

1. sus304 stainless steel sheet metal machine with strict magnetic closure and less magnetic flux leakage.

2. The magnetic field strength of magnetic roller is more than 17,000 gauss with good magnetic effect.

3.Wide magnetic surface of 1300mm, which ensures the processing capacity and improves the magnetic effect.

4.This machine adopts original design of bulk grain equipment with uniform bulk grain and no maintenance, which greatly reduces the losses caused by the vibration feeder damage.

5.It is equipped with the most advanced transducer. According to different types of materials, it’s very convenient to adjust to optimum operation speed.
